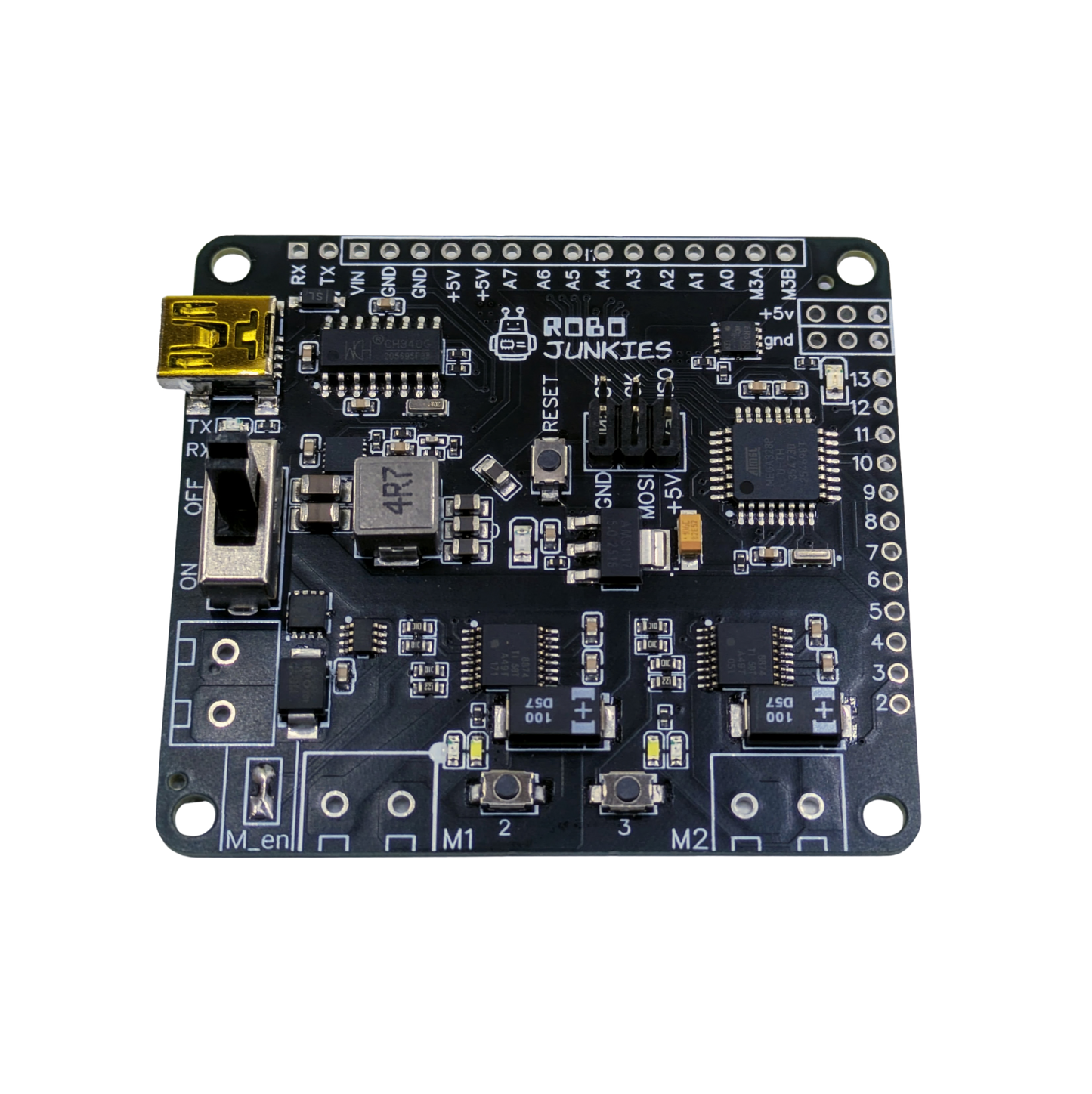

Aiduino- Robot Control Board

The Aiduino Robot Control Board is a compact, high-performance all-in-one control solution designed for advanced robotics builds, especially competitive line follower robots.

This board consolidates motor control, power regulation, and suction system control into a single lightweight, reliable board.

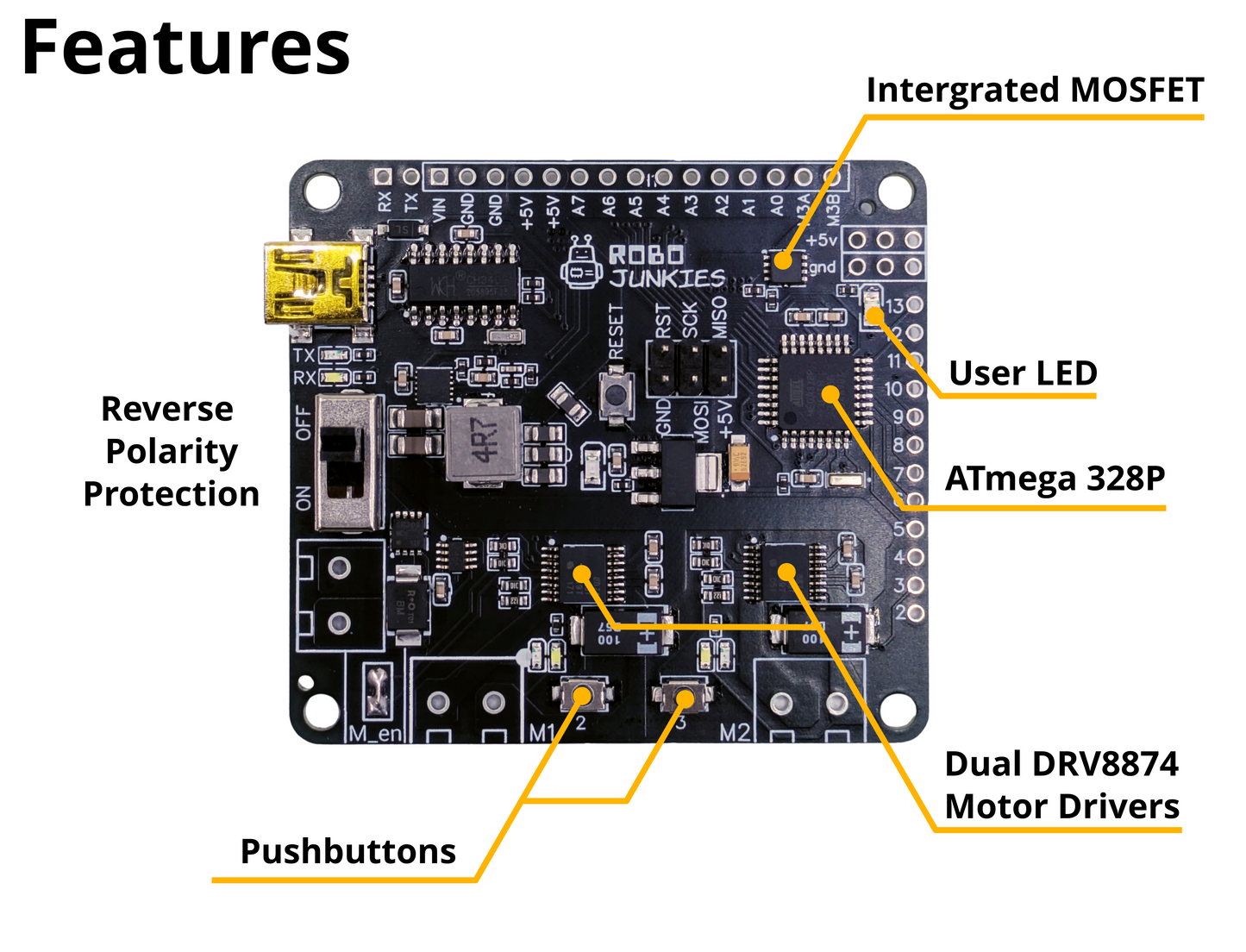

Key Features

Dual DRV8874 Motor Drivers

Two independent motor channels delivering upto 6A per motor

Integrated 4.5A BEC (5V Output)

Onboard high-current 5V regulated supply which delivers stable power to microcontrollers, sensors, and peripherals

Dedicated MOSFET Circuit for Suction System

Onboard MOSFET output to directly drive impeller motors

Arduino Compatible (ATmega328P)

Program it like you program any nano board

Reverse Polarity Protection

Protects the board from accidental battery reverse connection

Onboard LED & Pushbuttons

Convenient user input and for calibration, or custom functions

Design

Lightweight: ~13 grams

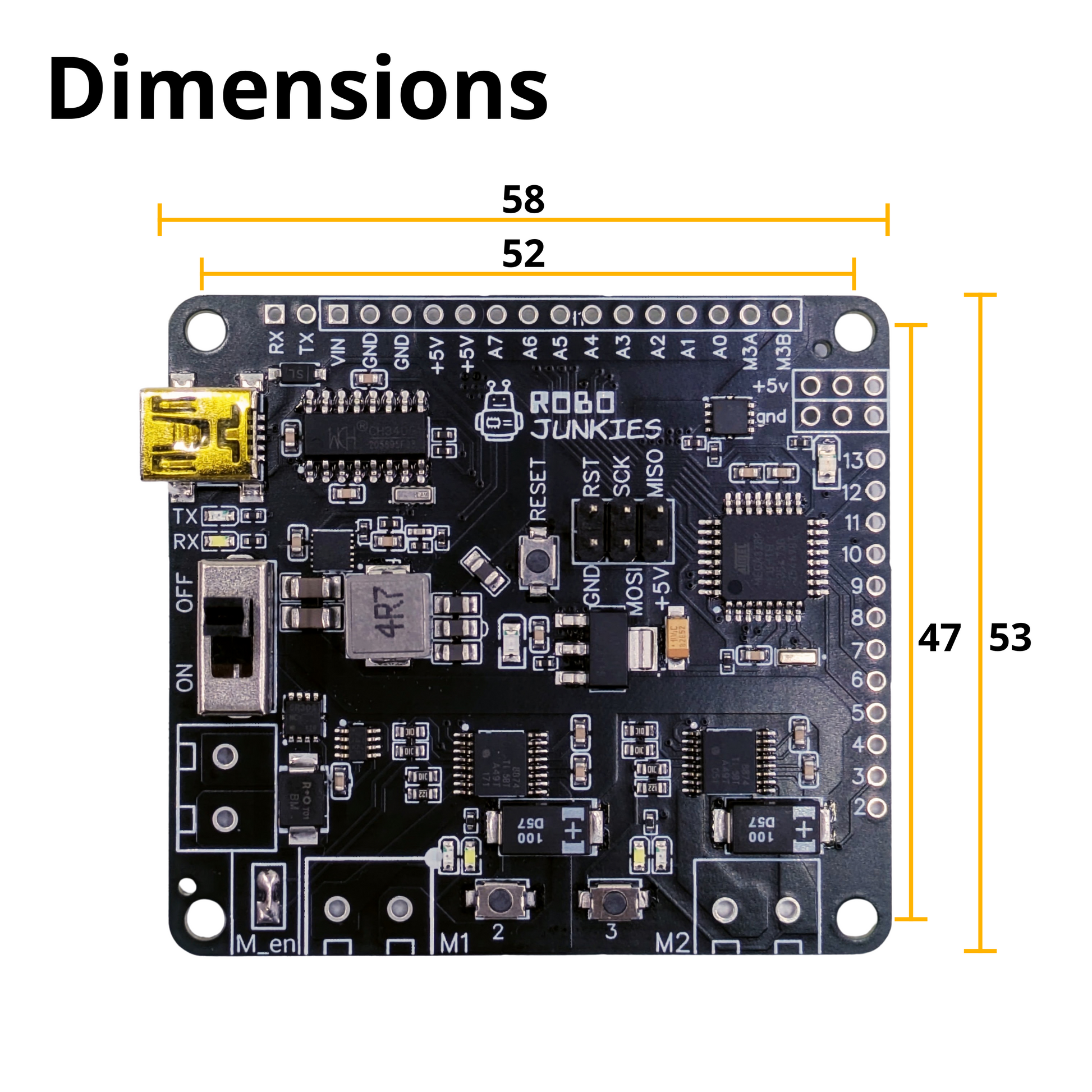

Compact layout- 60*53mm

Reduced wiring complexity with all essential subsystems integrated into a single PCB

Ideal For

-Advanced line follower robots

-Suction-based competition builds

-Robotics enthusiasts looking to upgrade from modular driver setups

-Builds requiring high current capability with minimal system weight

The Aiduino Robot Control Board provides the power handling, integration, and reliability required for serious robotics applications — in a streamlined, competition-ready form factor.
